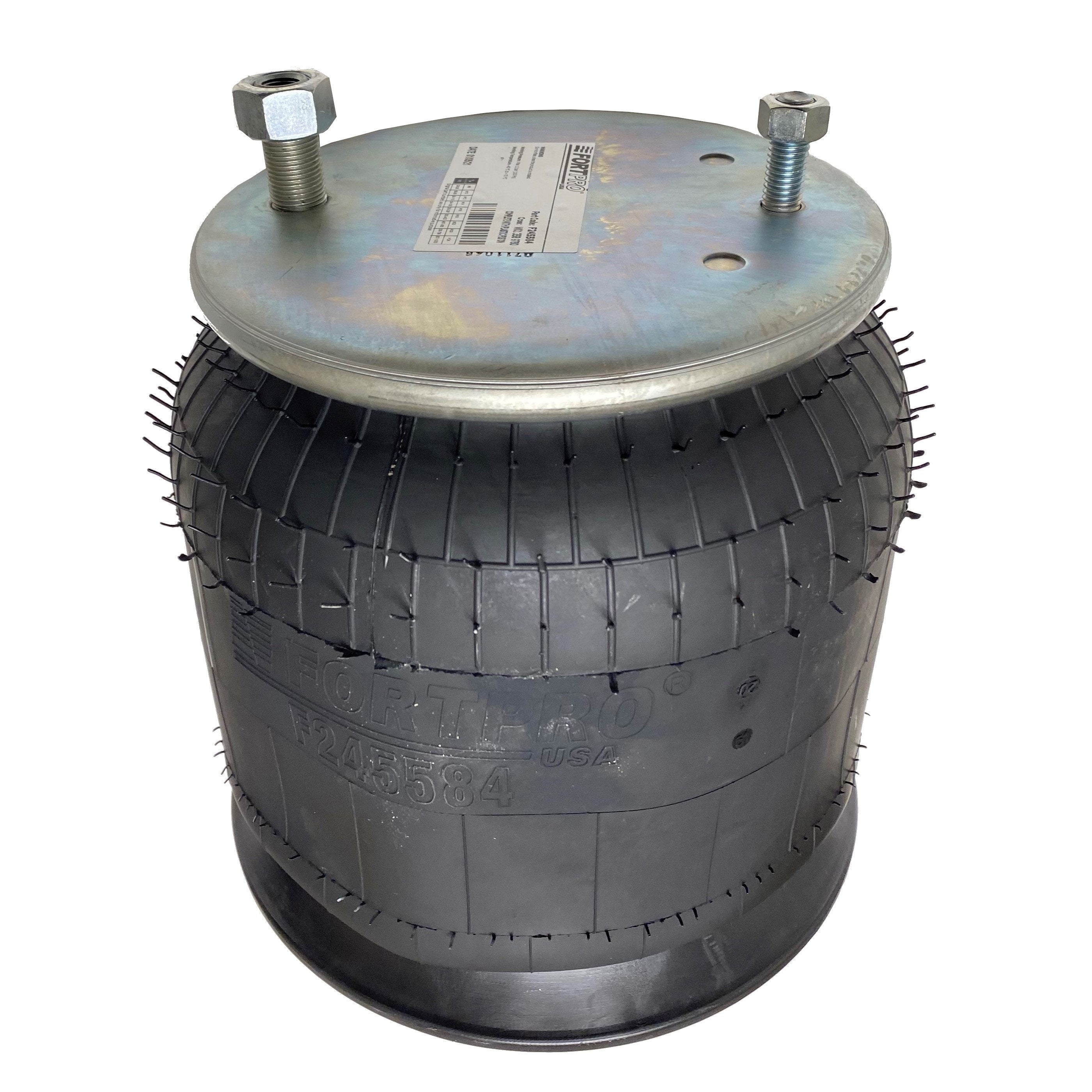

    F9780 AIR SPRING A16-18335-001

    Manufacturer: FORTPRO
    SKU: F245584
    Price:
    i h h
    Products specifications
    Basic Part Information
    Product LineSuspension
    Category NameAir Springs and Bags
    Part TypeRolling Lobe Air Spring
    Alternate Part NameAir Suspension Bag, Reversible Sleeve Air Spring, Air Ride Spring, Rolling Lobe Air Spring, Air Bag Suspension, Pneumatic Spring, Suspension Air Bag
    OEM Part NumberW01-358-9780
    Application/Fitment Attributes
    Application TypeSemi-Trucks, Heavy Duty Trucks
    VMRS016-008-000
    Dimensional/Physical Attributes
    MaterialFiber reinforced rubber bellows
    Air Inlet Inside Thread1/4-18 NPTF
    Air Inlet Outside Thread3/4 16 UNF
    Body Diameter10.62 in.
    Bottom Plate AlignmentParallel
    Bottom Plate Diameter10.53 in.
    Bottom Plate Stud1/2-13 UNC
    Mounting Stud Configuration - Bottom1
    Mounting Stud Configuration - Top2
    Piston Height6.89 in.
    Piston Material TypeComposite
    Top Plate Diameter9.00 in.
    Top Plate Stud1/2-13 UNC
    Technical/Performance Attributes
    Air Spring Type1T Reversible Sleeve
    Collapsed Length8.60 in.
    Extended Length23.00 in.
    Packaging & Logistics Attributes
    Net Weight13.60 lb.
    Special Attributes
    Cross References1613810000, 1613810001, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 1R12186, 1R12189, 1R12303, 1R12603, 3529781, 566CT67473, 6813200017, 6813280001, 9780, A1613668002, A1614004000, A1614004001, A1614377, A1618335000, A1618335001, AB1DF239780, AS9780, EAS9780, FS9780, M3550, MAF9780, W013589780, W013778528, 136922, 1DK23K9780, 1R12-303, 1T15ZR-6, 1T15ZR6, 32303 KPP, 331061, 342303-CPL, 342303CPL, 449781-CPL, 449781CPL, 9 10S-16, 9 10S16, 910S16A382, 910S16P382, 935621, P 382, W01 358 9780
    Intended Application
    • Compatible with Freightliner FASII AirLiner (1990+) Tractor Axle Rear Suspension.
    *
    *
    *
