| Product Line | Suspension |
| Category Name | Air Springs and Bags |

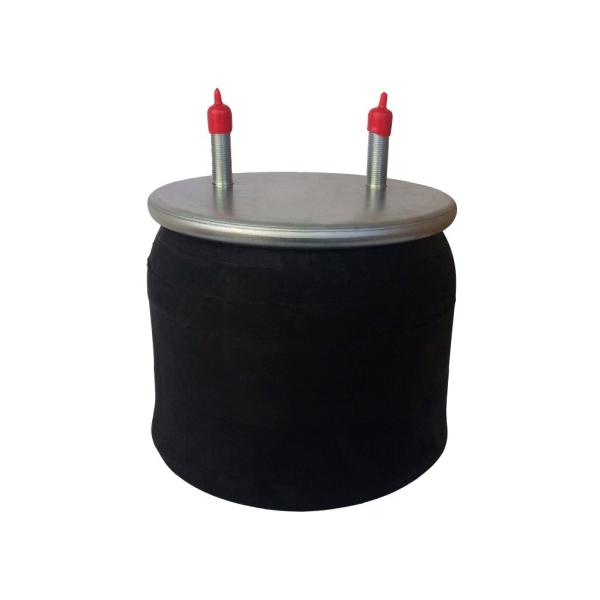

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag |
| OEM Part Number | W01-358-8713 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4 16 UNF |
| Body Diameter | 10.62 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 8.80 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 5.38 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 10.30 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 9.10 in. |
| Extended Length | 19.00 in. |
| Net Weight | 16.50 lb. |
| Cross References | 101016S533, 1R13176, 1R13263, 3528713, 566CT64636, 64636, 755149, 8713, AB1DK25E8713, AS8713, FS8713, S22697, S22948, W013588713, MAF8713, W01-358-8713 |
| Intended Application | - Compatible with Hendrickson Trailer (Van Traax) Rear Air Suspension – pre-September 1999 version using 9525 piston with bumper spacer.
|
