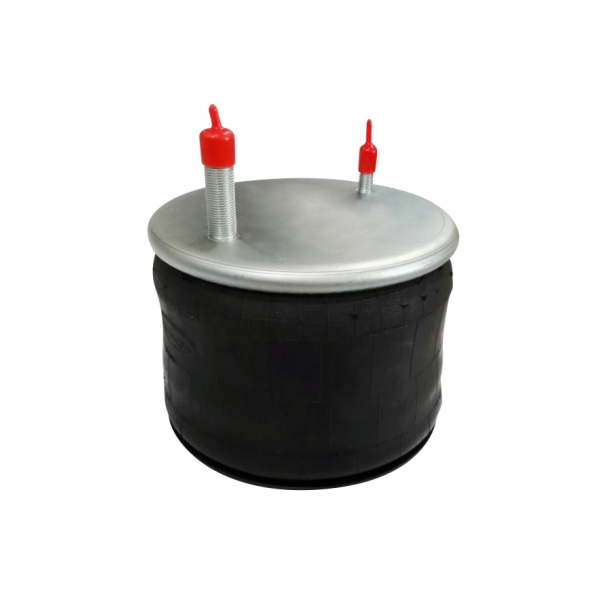

    F9422 AIR SPRING, 1R11-028

    Manufacturer: FORTPRO
    SKU: F245588
    Price:
    i h h
    Products specifications
    Basic Part Information
    Product LineSuspension
    Category NameAir Springs and Bags
    Part TypeRolling Lobe Air Spring
    Alternate Part NameRolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Air Bag Suspension, Suspension Air Bag
    OEM Part NumberW01-358-9422
    Application/Fitment Attributes
    Application TypeHeavy Duty Trucks, Semi-Trucks
    VMRS016-008-000
    Dimensional/Physical Attributes
    MaterialFiber reinforced rubber bellows
    Air Inlet Inside Thread1/4-18 NPT
    Air Inlet Outside Thread3/4 16 UNF
    Body Diameter9.12 in.
    Bottom Plate AlignmentParallel
    Bottom Plate Diameter9.50 in.
    Bottom Plate Stud1/2-13 UNC
    Mounting Stud Configuration - Bottom2
    Mounting Stud Configuration - Top2
    Piston Height2.80 in.
    Piston Material TypeComposite
    Top Plate Diameter9.00 in.
    Top Plate Stud1/2-13 UNC
    Technical/Performance Attributes
    Air Spring Type1T Reversible Sleeve
    Collapsed Length3.80 in.
    Extended Length13.30 in.
    Packaging & Logistics Attributes
    Net Weight13.00 lb.
    Special Attributes
    Cross References1R11028, 1T15KW15, 1T15L2, 1T15T3, 3130496, 3529422, 3529422AG, 554762C1, 566CT64255, 64255, 9205, 9422, 9614, 9615, 9912P314, AB1DK20D9422, AS0017, CS111028, FAS-0689, FAS0689, FS9422, GY1R11028, K30314, K30315, K3036, M3525, S13032, W013589422, W01-358-9422
    Intended Application
    • Compatible with Kenworth Airglide 100 Rear Air Suspension – older version without bracket.
    *
    *
    *
