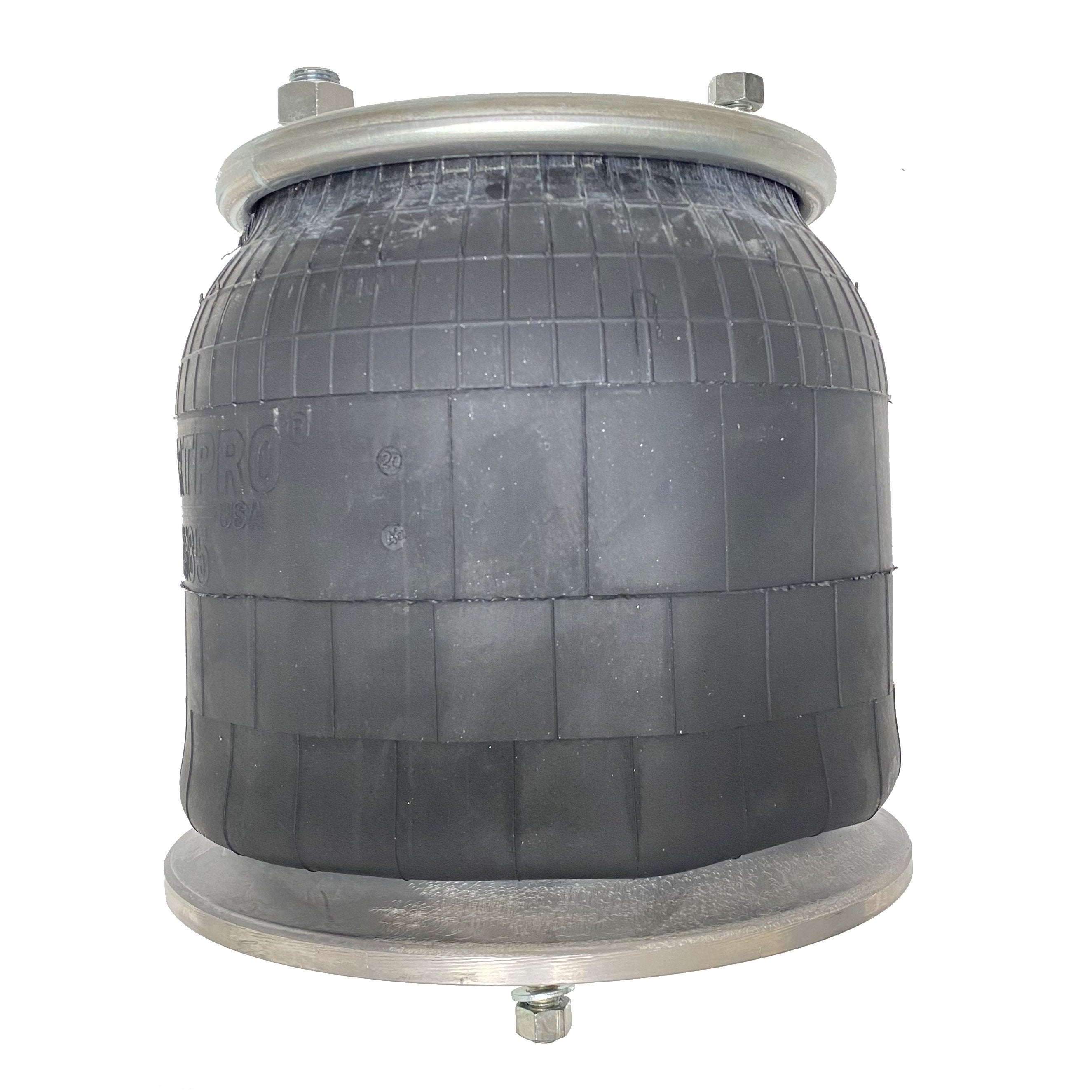

F9781 AIR SPRING 1R12-603 A16-19468-000, 8529

Name: F9781 AIR SPRING 1R12-603 A16-19468-000, 8529
Brand: FORTPRO
SKU: F245585
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F245585

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Rolling Lobe Air Spring
Alternate Part Name	Air Bag Suspension, Air Suspension Bag, Reversible Sleeve Air Spring, Rolling Lobe Air Spring, Air Ride Spring, Pneumatic Spring, Suspension Air Bag
OEM Part Number	W01-358-9781
Application/Fitment Attributes
Application Type	Semi-Trucks, Heavy Duty Trucks
VMRS	016-008-000
Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Air Inlet Inside Thread	1/4-18 NPT
Air Inlet Outside Thread	3/4 16 UNF
Body Diameter	10.62 in.
Bottom Plate Alignment	Parallel
Bottom Plate Diameter	10.62 in.
Bottom Plate Stud	1/2-13 UNC
Mounting Stud Configuration - Bottom	1
Mounting Stud Configuration - Top	2
Piston Height	6.91 in.
Piston Material Type	Aluminum
Top Plate Diameter	9.00 in.
Top Plate Stud	1/2-13 UNC
Technical/Performance Attributes
Air Spring Type	1T Reversible Sleeve
Collapsed Length	8.75 in.
Extended Length	23.00 in.
Packaging & Logistics Attributes
Net Weight	17.20 lb.
Special Attributes
Cross References	1613840000, 1614004000, 1616773000, 1619466000, 1R12-603, 1R12603, 3529780, 566CT64266, 566CT68207, 64266, 6813200017, 910S16A382, A1614004000, AB1DF239781, AB1DF23A999, AS9781, EAS9781, FS9781, MAF9781, W013589781, W013778536, W013779780, 16-13810-000, 16-15595-000, 16-19465-000, 16-19466-000, 16-19769-000, 1613810000, 1615595000, 1619465000, 1619769000, 1DF23-9781, 1DF239781, 1R12-1064, 1R121064, 332441, 449780, 6363, 85101151, AS8382, AS9780A, MAF9781B, N32-0197811, N320197811, SC2750
Intended Application	Compatible with Freightliner (Cascadia, Century Class, Coronado, Columbia) AirLiner II (Rear Suspension).
