| Product Line | Suspension |
| Category Name | Air Springs and Bags |

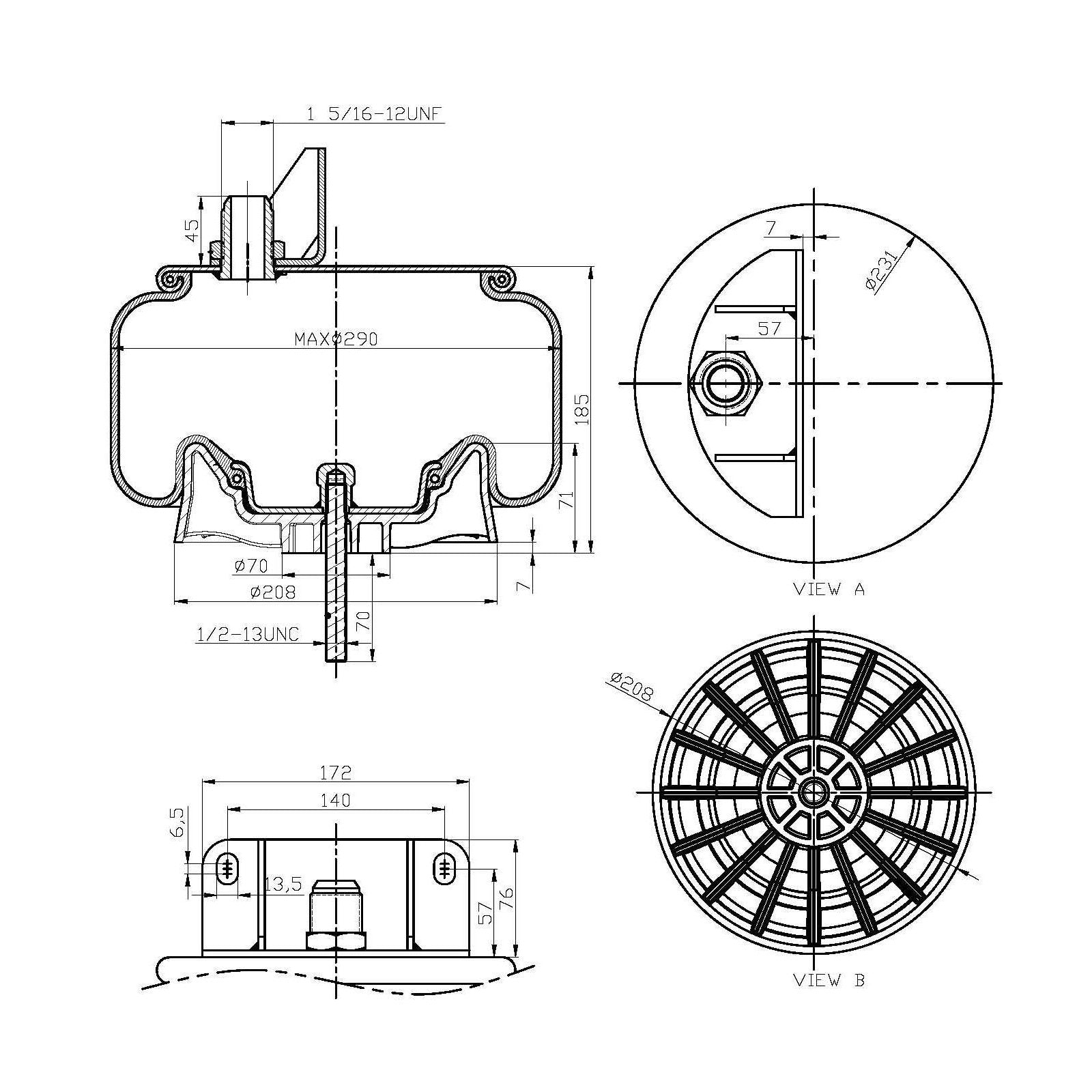

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Suspension Bag, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring |
| OEM Part Number | W01-358-9622 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| VMRS | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Body Diameter | 9.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 8.50 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 1 |
| Piston Height | 2.80 in. |
| Piston Material Type | Steel |
| Top Plate Diameter | 9.00 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 4.20 in. |
| Extended Length | 12.00 in. |
| Net Weight | 16.60 lb. |
| Cross References | 1R11221, 3529622, 566CT68359, 68359, 8537, 9622, 999P537(BK), AB1DK20G9622, AS9622, FAS-0698, FAS0698, FS9622, K30319, K30322, W013589622, 999P537, MAF9622, W01-358-9622 |
| Intended Application | - Compatible with Kenworth (T600, T800, W900, T660) equipped with AirGlide 100 / AirGlide 200 Rear Air Suspension Systems.
|
