| Product Line | Suspension |
| Category Name | Air Springs and Bags |

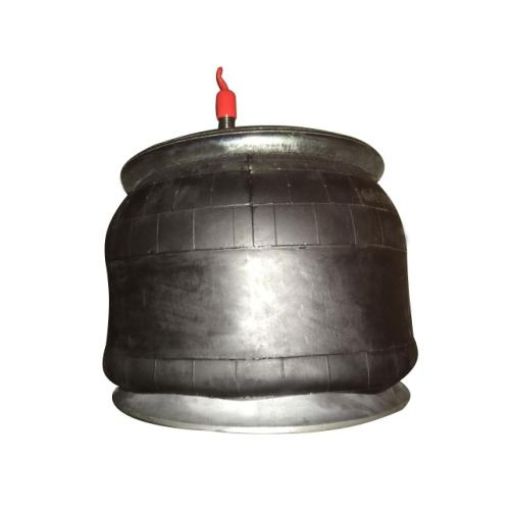

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag |
| OEM Part Number | W01-358-9366 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4 16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 9.80 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 1 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 3.75 in. |
| Piston Material Type | Composite |
| Top Plate Diameter | 9.00 in. |
| Top Plate Stud | 1/2 13 UNC |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 5.50 in. |
| Extended Length | 15.00 in. |
| Net Weight | 14.99 lb. |
| Cross References | 1R12487, 3529366, 566CT64459, 64459, 804333, 8488, 90557160, 90557210, 90557225, 91012A488, 91012P488, 9366, AB1DK23H9366, AS0054, AS9366, FS9366, W013589366, MAF9366, W01-358-9366 |
| Intended Application | - Compatible with Wabash and other heavy-duty trailers equipped with Neway Holland Rear Air Suspension Systems.
|
