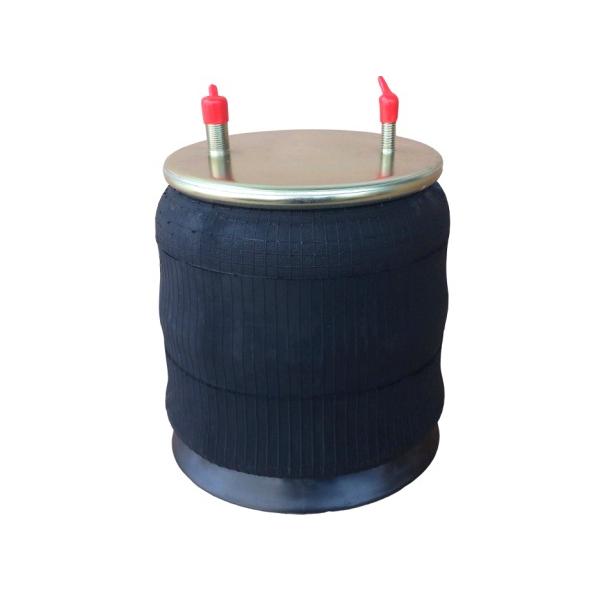

    F9082 AIR SPRING

    Manufacturer: FORTPRO
    SKU: F245583
    Price:
    i h h
    Products specifications
    Basic Part Information
    Product LineSuspension
    Category NameAir Springs and Bags
    Part TypeRolling Lobe Air Spring
    Alternate Part NameAir Ride Spring, Pneumatic Spring, Rolling Lobe Air Spring, Air Suspension Bag, Reversible Sleeve Air Spring, Suspension Air Bag, Air Bag Suspension
    OEM Part NumberW01-358-9082
    Application/Fitment Attributes
    Application TypeHeavy Duty Trucks, Semi-Trucks
    VMRS016-008-000
    Dimensional/Physical Attributes
    MaterialFiber reinforced rubber bellows
    Air Inlet Inside Thread1/4-18 NPT
    Air Inlet Outside Thread3/4 16 UNF
    Body Diameter10.12 in.
    Bottom Plate Alignment45 deg.
    Bottom Plate Diameter10.25 in.
    Bottom Plate Stud1/2-13 UNC
    Mounting Stud Configuration - Bottom4
    Mounting Stud Configuration - Top2
    Piston Height5.68 in.
    Piston Material TypeComposite
    Top Plate Diameter9.00 in.
    Top Plate Stud1/2-13 UNC
    Technical/Performance Attributes
    Air Spring Type1T Reversible Sleeve
    Collapsed Length7.90 in.
    Extended Length20.75 in.
    Packaging & Logistics Attributes
    Net Weight19.80 lb.
    Special Attributes
    Cross References0646, 1R11917, 1R12092, 1R12093, 1R12134, 1R12509, 1R12677, 1R13097, 1T15K1, 1T15K1M6, 1T15M6, 3048200003, 3090044200, 3090557006, 3090557027, 3090557031, 3090557075, 3130491, 3529082, 365147, 517096C9, 517096C91, 517559C9, 566CT64269, 57QL310, 64269, 646, 90557027, 9082, 9084, 91016P310, 963001, 963003, AB1DK23K9082, AS0011, AS9082, B2066, CS112092, FS9082, GY1R12092, H963001, M3513, S4041, W013589082
    Intended Application
    • Compatible with Hendrickson Canada, Kelderman, Hutchens, Holland (Neway), Reyco, R & S Truck & Body, Ridewell Air Suspension Systems — for Rear Axle and Trailer Air Suspension Applications used on Freightliner, Peterbilt, Kenworth, Mack, and International Trucks.
    *
    *
    *
