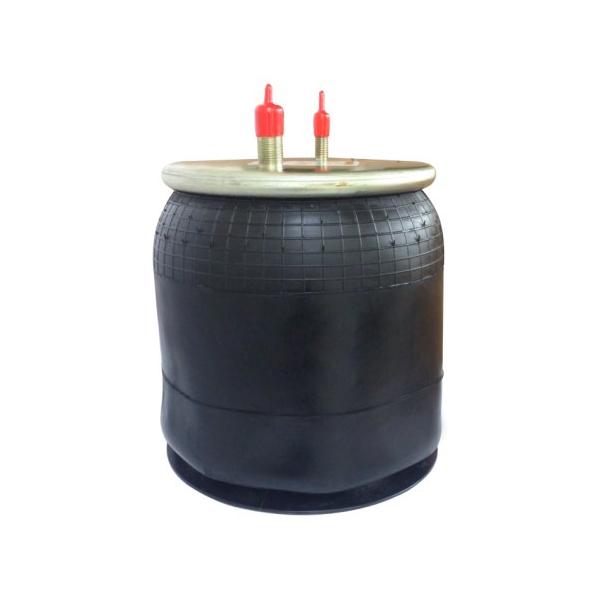

F9466 AIR SPRING

Manufacturer: FORTPRO
SKU: F245582
Price:
i h h
Products specifications
Basic Part Information
Product LineSuspension
Category NameAir Springs and Bags
Part TypeRolling Lobe Air Spring
Alternate Part NameSuspension Air Bag, Air Bag Suspension, Reversible Sleeve Air Spring, Air Suspension Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring
OEM Part NumberW01-358-9466
Application/Fitment Attributes
Application TypeSemi-Trucks, Heavy Duty Trucks
VMRS Code016-008-000
Dimensional/Physical Attributes
MaterialFiber reinforced rubber bellows
Air Inlet Inside Thread1/4-18 NPT
Air Inlet Outside Thread3/4 16 UNF
Body Diameter10.12 in.
Bottom Plate Alignment90 deg.
Bottom Plate Diameter10.00 in.
Bottom Plate Stud1/2-13 UNC
Mounting Stud Configuration - Bottom2
Mounting Stud Configuration - Top2
Piston Height4.88 in.
Piston Material TypeComposite
Top Plate Diameter9.00 in.
Top Plate Stud1/2-13 UNC
Technical/Performance Attributes
Air Spring Type1T Reversible Sleeve
Collapsed Length8.10 in.
Extended Length20.00 in.
Packaging & Logistics Attributes
Net Weight19.60 lb.
Special Attributes
Cross References1R12173, 1R12197, 1R12365, 1R12902, 350034409, 3529466, 364QS28, 49048000, 49048002, 49048002L, 490482, 49674000, 49674001, 49674002, 566CT64276, 57QL411M, 91016P410, 9466, AB1DK23K9466, AB1DK23KP442, AS0140, AS9466, E9HZ5580A, FS9466, M3526, W013589466
Intended Application
  • Compatible with Ford (Aeromax, F650/F750) and Mack (CH, CX, GU series) Hendrickson HA/HA-360/400/460 (Rear Air Suspension)
*
*
*
