| Emergency Port Thread Size | 3/8-18 NPTF |
| Chamber Style | Double Diaphragm |
| Mounting Bolt Length | 1.50 in. |
| Mounting Bolt Thread Size | 5/8-11 UNC-2A |
| Brake Type | Drum |
| Model | Type 3030, T30/30, 3030, 30 30 |

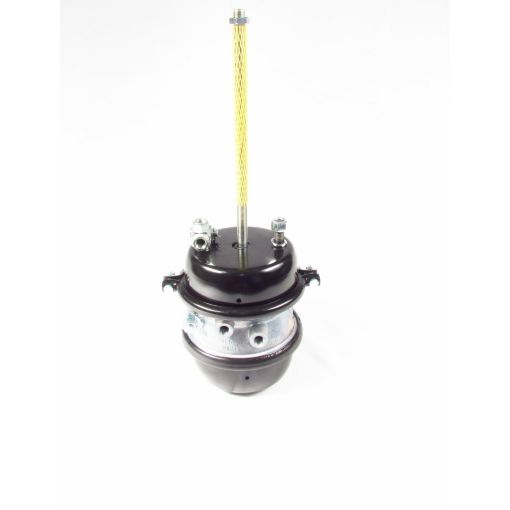

| Part Type | Air Brake Chamber |
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Brake System Compatibility | S-Cam |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Port Orientation | 90° |
| Maximum Operating Pressure | 150 PSI |
| Serviceability | Sealed |
| Stroke Lenght | 2.50 in. |
| Stroke Type | Standard Stroke |
| Clevis Yoke | Included |
| Service Chamber Joint Type | Single Clamp Band |
| Push Rod Thread Size | 5/8-18 UNF-2A |
| Service Port Thread Size | 3/8-18 NPTF |
| Clevis Mounting Type | Threaded |
| Chamber Type | Spring Brake Chamber |
| Push Rod Length | 12.00 in |
| Outside Diameter (O.D.) | 8.30 in. |
| Cross References | 179SB3030, K049898, NT3030STD120, E-BC3030C, 3232951, 3232951X |
