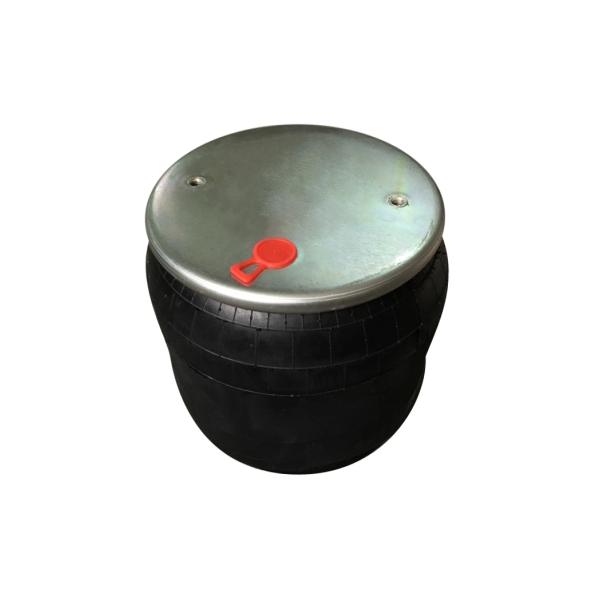

F9069 AIR SPRING

Manufacturer: FORTPRO

SKU: F245587

Price:

Qty:

i h h

Specifications
Contact Us

Products specifications

Basic Part Information
Product Line	Suspension
Category Name	Air Springs and Bags
Part Type	Rolling Lobe Air Spring
Alternate Part Name	Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Air Bag Suspension
OEM Part Number	W01-358-9069
Application/Fitment Attributes
Application Type	Heavy Duty Trucks, Semi-Trucks
VMRS Code	016-008-000
Dimensional/Physical Attributes
Material	Fiber reinforced rubber bellows
Air Inlet Inside Thread	1/2 NPT
Body Diameter	10.12 in.
Bottom Plate Alignment	Parallel
Bottom Plate Diameter	9.50 in.
Bottom Plate Stud	1/2-13 UNC
Mounting Stud Configuration - Bottom	1
Mounting Stud Configuration - Top	2
Piston Height	4.75 in.
Piston Material Type	Aluminum
Top Plate Diameter	9.00 in.
Top Plate Stud	3/8-16 UNC
Technical/Performance Attributes
Air Spring Type	1T Reversible Sleeve
Collapsed Length	7.50 in.
Extended Length	18.00 in.
Packaging & Logistics Attributes
Net Weight	15.80 lb.
Special Attributes
Cross References	0301649, 0302038, 0302456, 0304759, 0307112, 1003589069C, 1R12069, 1R12669, 1R12676, 1T15M4, 301649, 302038, 302456, 304759, 3057000709, 306746, 307112, 310042, 3130497, 3529069, 554764C1, 566CT64274, 566ER9069, 64274, 9069, 91014P312, AB1DK23I9069, AB1DK23IA312, AS0077, AS9069, CS112069, FAS-0685, FAS0685, GY1R12069, M3512, S13031, W013589069, FS9069, MAF9069, W01-358-9069
Intended Application	Peterbilt Heavy-Duty Vehicles with Air Trac Suspension
