| Product Line | Brakes |
| Category Name | Brake Shoes |

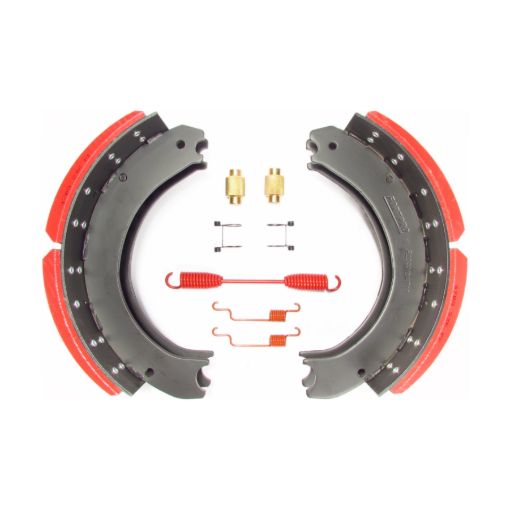

| Part Type | Brake Shoe Kit |
| FMSI Shoe Number | 4709ES1 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Brake Shoe Type | ES II (Eaton) |
| Hardware Kit Part Number | F224803 |
| Lined Brake Shoe Part Number | F224844 |
| Unlined Brake Shoe Part Number | F224845 |
| Brake Diameter (I.D.) | 16.50 in. |
| Brake Shoe Width | 7.00 in. |
| Rivet Hole Quantity | 28 |
| Rivet Size | 0.25 in. |
| Friction Type | Mid Standard |
| Lining Weight Rating | 23,000 LBS |
| Cross References | 8235-KEG4709ES2, GG4709ES2J, KEG4709ES2, KMG2L4709ES2, KN4709E223, KSMA3124709E2, SB4709E2BA200, SB4709E2BB200 |
| Intended Application | - Compatible with Eaton ES Brake - 2nd Version
|
| BOM | - 2 Lined Brake Shoes
- 1 Brake Repair Kit
|
