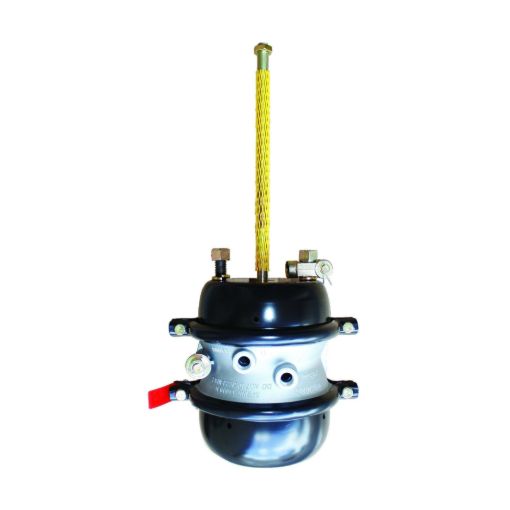

| Chamber Type | Spring Brake Chamber |
| Clevis Mounting Type | Threaded |
| Service Port Thread Size | 3/8-18 NPTF |
| Push Rod Thread Size | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Clevis Yoke | Included |
| Stroke Type | Standard Stroke |
| Stroke Lenght | 2.25 in. |
| Serviceability | Sealed |
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Brake System Compatibility | S-Cam |
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Part Type | Air Brake Chamber |
| Model | Type 2424, T24/24, 24/24, 24-24 |
| Brake Type | Drum |
| Mounting Bolt Thread Size | 5/8-11 UNF-2A |
| Mounting Bolt Length | 1.57 in. |
| Chamber Style | Double Diaphragm |
| Emergency Port Thread Size | 3/8-18 NPTF |
| Push Rod Length | 9 5/8" |
| Outside Diameter (O.D.) | 7.50 in. |
