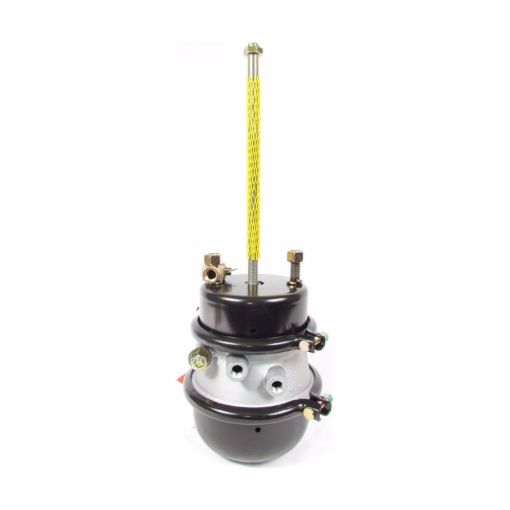

| Part Type | Air Brake Chamber |
| Alternate Part Name | Brake Canister / Brake Can / Air Brake Canister |
| Model | Type 2430, T24/30, 24/30, 24-30 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Brake System Compatibility | S-Cam |
| Brake Type | Drum |
| Chamber Style | Double Diaphragm |
| Chamber Type | Spring Brake Chamber |
| Clevis Mounting Type | Threaded |
| Emergency Port Thread Size | 3/8-18 NPTF |
| Mounting Bolt Length | 1.52 in. |
| Mounting Bolt Thread Size | 5/8-11 UNF-2A |
| Outside Diameter (O.D.) | 8.30 in. |
| Push Rod Length | 10.00 in. |
| Push Rod Thread Size | 5/8-18 UNF-2A |
| Service Chamber Joint Type | Single Clamp Band |
| Service Port Thread Size | 3/8-18 NPTF |
| Clevis Yoke | Included |
| Maximum Operating Pressure | 150 PSI |
| Port Orientation | 90° |
| Serviceability | Sealed |
| Stroke Lenght | 2.25 in. |
| Stroke Type | Standard Stroke |
| Cross References | 1607379C91, 1607380C91, 19QE453RP3, 2430GC, 800830, E-GC2430, EGC2430, EM24300-100, EM24300100, FLTC2430SB20, GC2430, K026561 |
