| Product Line | Brakes |
| Category Name | Air Dryers |

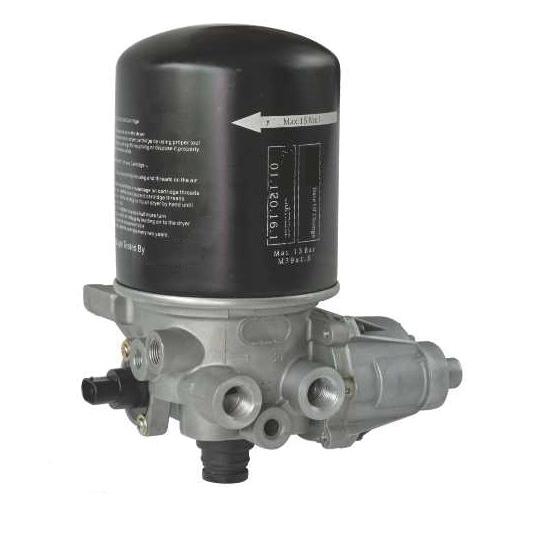

| Part Type | Air Brake Dryer |
| Model | SS-1200 (System Saver) |
| OEM Part Number | R955205 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Body Mounting Type | 1/2-13 UNC-2B (3x) |
| Cartridge Thread Type | M39 x 1.5-6H RH |
| Cartridge Type | Standard |
| Control Port Size | 1/4 in.-18 NPT |
| Delivery Port 1 Size | 1/2-14 NPT |
| Heater Connector Type | Metri-Pack Sealed Connector (Male) |
| Lower Mounting Bracket Type | 1/2-13 UNC-2B (3X) Flange Mount |
| Purge Exhaust Port Type | Standard |
| Purge Valve Type | Soft Seat |
| Supply Port Size | 1/2 in.-14 NPT |
| Minimum Operating Temperature | -40 deg. F (-40 deg. C) |
| Operating Voltage | 12V |
| Safety Valve Opening Pressure | 140 PSI |
| Thermostat Power Rating (Watts) | 100W |
| Cross References | 065691, 170955205, 170955205WOC, 26QE433, 3915282, 4006110500, 800887, R955205, R955205NX, R955205X, S-13728, TDA-R955205 |
| Intended Application | For use in standard air brake applications on trucks, tractors, and buses |
