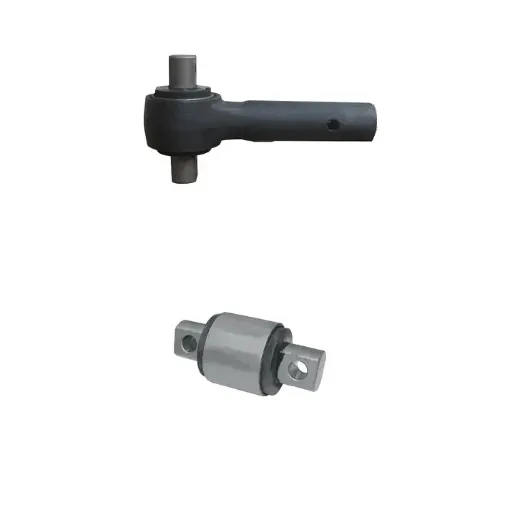

| Product Line | Suspension |
| Category Name | Chassis & Suspension |
| Part Type | Torque Rod End Assy |
| Alternate Part Name | Ultra Rod Plus, End Rod Assembly, End Rod Assembly, Torque Rod End Assy, Torque Arm End, Axle Torque Rod |
| OEM Part Number | 46610-001 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Mounting Position | Rear Suspension |
| Mounting Type | Straddle |
| Material | Forged Steel, Polyurethane |
| Bushing Hole Diameter | 5/8 in. |
| Bushing Outside Diameter (O.D.) | 2-3/4 in. |
| Distance Between Bolt Holes | 4-3/8 in. |
| Torque Rod Length | 8-5/8 in. |
| Net Weight | 10.84 lb. |
| Cross References | 46610, 46610-001, 46610001, 750102, GAFF13683, TMRU610E, TR35205, TR71000 |
| Intended Application | - Compatible with Hendrickson heavy-duty suspension systems in walking beam applications of the R, RS, RT/RTE, RT2/RTE2 (340-520) series, as well as the high-capacity RT441/650 models. Its technical design is fully interchangeable with the HAULMAAX and HN vocational suspension families, AR340/380 and AR2 (400/460/520) suspension systems, and the specialized RU/RUE, U/UE, SR340 and V4 340/380 series.
- Always compare with your OEM part number prior to purchase to confirm full compatibility.
|
| BOM | - Torque Rod pcs x 1
- Torque Rod Bush pcs x 1
|
