| Product Line | Suspension |
| Category Name | Air Springs and Bags |

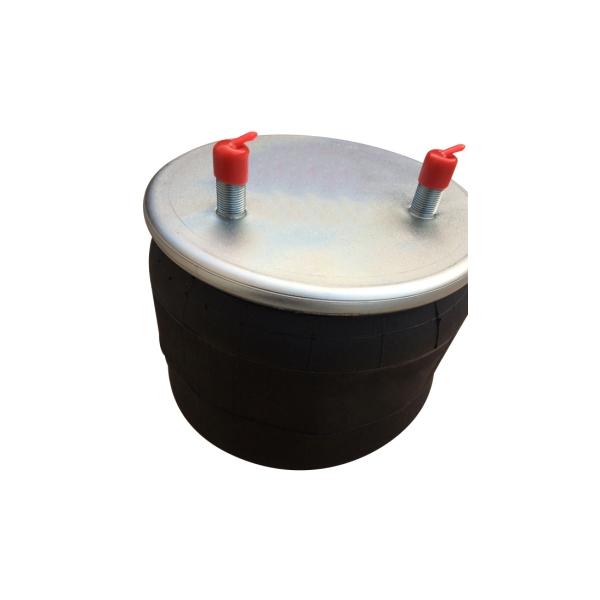

| Part Type | Rolling Lobe Air Spring |
| Alternate Part Name | Air Bag Suspension, Suspension Air Bag, Pneumatic Spring, Air Ride Spring, Rolling Lobe Air Spring, Reversible Sleeve Air Spring, Air Suspension Bag |
| OEM Part Number | W01-358-8755 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| VMRS | 016-008-000 |
| Material | Fiber reinforced rubber bellows |
| Air Inlet Inside Thread | 1/4-18 NPT |
| Air Inlet Outside Thread | 3/4 16 UNF |
| Body Diameter | 10.12 in. |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10.20 in. |
| Bottom Plate Stud | 1/2-13 UNC |
| Mounting Stud Configuration - Bottom | 4 |
| Mounting Stud Configuration - Top | 2 |
| Piston Height | 5.60 in. |
| Piston Material Type | Steel |
| Top Plate Diameter | 10.30 in. |
| Air Spring Type | 1T Reversible Sleeve |
| Collapsed Length | 7.30 in. |
| Extended Length | 18.50 in. |
| Net Weight | 26.45 lb. |
| Cross References | 101015S522, 1R13124, 3528755, 566CT64397, 64397, 8522, 8755, AB1DK25B8755, AS8755, FAS-0771, FAS0771, FS8755, S22045, W013588755, 1R13-124, W01-358-8755 |
| Intended Application | - Compatible with Hendrickson Trailer (HK190T) and Hendrickson Trailer Prototype Rear Air Suspension Systems.
|
