| Product Line | Brakes |
| Category Name | Air Brake Valves |

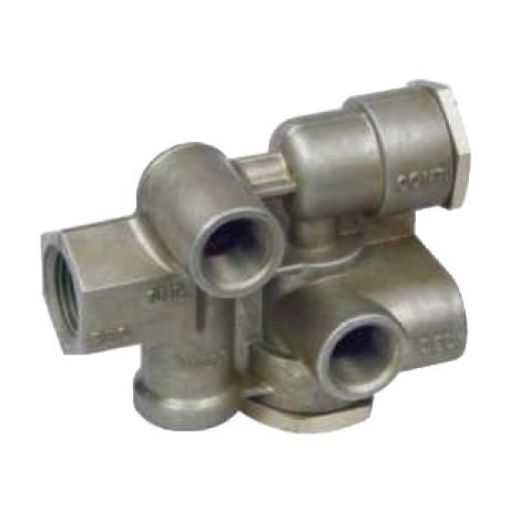

| Part Type | Spring Brake Control Valve |
| Alternate Part Name | Standard Spring Brake Control Valve |
| OEM Part Number | 110500 |
| Application Type | Semi-Trucks, Heavy Duty Trucks |
| Control Port Size | 3/8-18 NPT |
| Delivery Port Qty | 4 |
| Delivery Port Size | 3/8-18 NPT |
| Reservoir Port Size | 1/2-14 NPT |
| Supply Port Size | 3/8-18 NPT |
| Material | Iron Cast |
| Net Weight | 1.34 lb. |
| Cross References | 110500, 7546-110500, 7546110500, AV110500, AV51301, E-SL110500, ESL110500, LSC-5247, LSC5247, MAK7546-110500, MAK7546110500, RSL110500 |
| Intended Application | - Designed for use on single- or multi-axle trailers equipped with spring brake chambers. It is compatible with systems using 2,800 cubic inch (jumbo) and/or 1,400 cubic inch air reservoirs. It also meets all FMVSS 121 and CMVSS 121 regulations, ensuring compliance with established safety standards.
|
