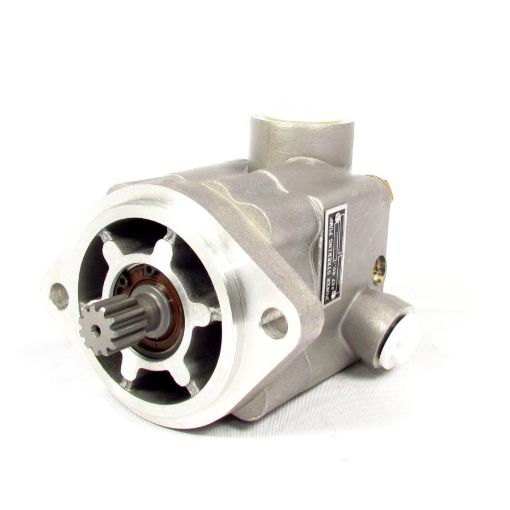

POWER STEERING PUMP 2106721, 542-0169-10, 14-12384-005

Name: POWER STEERING PUMP 2106721, 542-0169-10, 14-12384-005
Brand: FORTPRO
SKU: F255709
Availability: OutOfStock

Manufacturer: FORTPRO

SKU: F255709

Price:

Qty:

i h h

Products specifications

Basic Part Information
Product Line	Steering Components
Category Name	Power Steering Pump
Part Type	Steering Pump
Alternate Part Name	Hydraulic Power Steering Pump
Model	PS
OEM Part Number	2106721
Application/Fitment Attributes
Inlet Port Thread Size	1-1/16-12 UN
Mounting Type	2 Bolt Flange SAE-A SIZE
Outlet Port Thread Size	3/4-16 UNF
Dimensional/Physical Attributes
Material	Cast Iron
Technical/Performance Attributes
Max Operating Speed	3600 rpm
Max Relief Pressure	150 bar
Nominal Flow Rate	22.5 L/min
Pump Displacement	21.0 cm³/rev
Shaft Rotation Direction	Left-Hand
Shaft Type	11-Tooth Spline
Packaging & Logistics Attributes
Package Length	6.00 in.
Package Width	7.00 in.
Package Height	6.00 in.
Net Weight	8.50 lb.
Special Attributes
Cross References	14-12485-000, 1412485000, 1682-627-C91, 1682627C91, 1684-621-C91, 1684621C91, 2106721, K188-320, K188-331, K188-350, K188320, K188331, K188350
