| Product Line | Brakes |
| Category Name | Slack Adjusters |

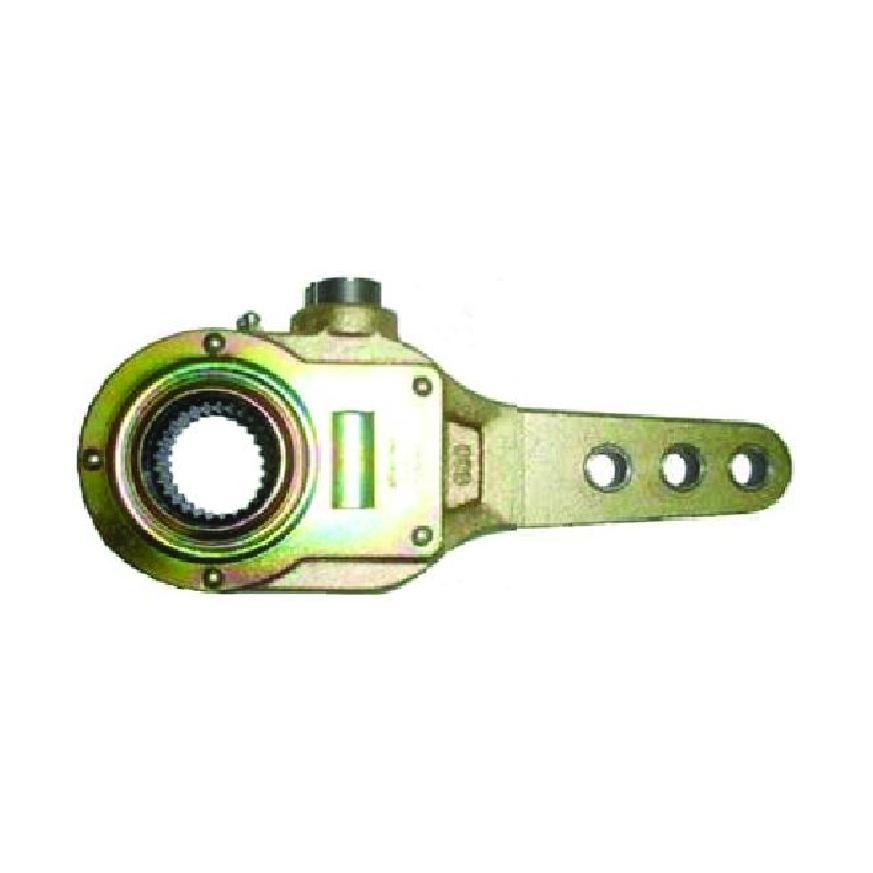

| Part Type | Manual Slack Adjuster |
| Model | Bendix Style / PL-20 |
| OEM Part Number | 288282 |
| Application Type | Heavy Duty Trucks, Semi-Trucks |
| Compatible Brake Chamber Sizes | T-16, T-20, T-24 |
| Clevis Type | Straight |
| Material | Alloy Steel |
| Arm Bushing Inside Diameter | 1/2 in. |
| Arm Length Position 1 | 7 in. |
| Arm Length Position 2 | 6 in. |
| Arm Length Position 3 | 5 in. |
| Arm Offset | No Offset |
| Body Inclination Angle | 0 deg. |
| Clevis Thread Diameter | 5/8-18 UNF-2B |
| Slack Spline Count | 28 |
| Slack Spline Diameter | 1-1/2 in. |
| Maximum Operating Temperature | 158 deg. F (70 deg. C) |
| Maximum Torque | 26.000 In./Lbs. |
| Minimum Operating Temperature | (-40 deg. F) (-40 deg. C) |
| Operation Type | Tension Adjuster - Torque |
| Positive Lock Feature | Yes |
| Cross References | 1342840, 288282, 35124, 5262, CS44071, E-2458S, E-2458S-BK, E2458S, E2458SBK, KN44051, M3373, R824003 |
